WP Series - Gauge/Differential Liquid Pressure Transmitters

Available: Out of Stock
Rs. 1.00
Successful pre-order.Thanks for contacting us!
Secure

FEATURES

  • Excellent long-term stability and high accuracy
  • Backlit LCD for display of differential or gauge pressure
  • Jumper selectable LCD backlight for low power consumption applications
  • Four switch selectable pressure ranges
  • Jumper selectable output types, 4-20 mA, 0-5 and 0-10 Vdc
  • NEMA 4X (IP65) enclosure
  • Pushbutton and remote zeroing terminal
  • Uni-directional or bi-directional pressure range selection switch
  • High / low port swap switch to solve incorrect plumbing for differential
  • Normal or slow surge damping switch to prevent false alarms and reduce noise
  • Output polarity reverse switch

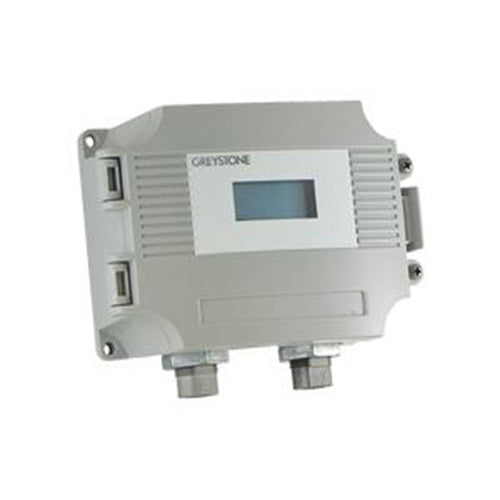

Gauge pressure transmitter Wet/Wet differential pressure transmitter c/w LCD
Gauge pressure transmitter Wet/Wet differential
pressure transmitter c/w LCD


APPLICATIONS

  • Pump Monitoring
  • Filter Monitoring
  • Chiller Monitoring
  • HVAC Systems

DESCRIPTION
The Wet-Wet pressure transmitter is designed with dual sensors that enable it to accept high differential pressures in the ranges of 5PSI to 500PSI. All models can handle overload pressure 2X the maximum full scale range and burst pressure is 5X the maximum full scale range.

The gage pressure transmitter is designed with a single sensor that enables it to accept high pressures in the ranges of 5PSI to 500PSI. All models can handle overload pressure 2X the maximum full scale range and burst pressure is 5X the maximum full scale range.

Features include field selectable pressure ranges and output signal types for the most flexible applications. Typical HVAC applications include monitoring of water differential and gage pressure. The output signal is factory calibrated and temperature compensated for the highest start-up accuracy.

Ensure that the maximum individual port pressure does not exceed the maximum pressure range of the unit. For example, the maximum individual port pressure on a WPD-102 is 100 PSI. Exceeding this may damage the sensors and WILL give erroneous readings.

FEATURES

  • Excellent long-term stability and high accuracy
  • Backlit LCD for display of differential or gauge pressure
  • Jumper selectable LCD backlight for low power consumption applications
  • Four switch selectable pressure ranges
  • Jumper selectable output types, 4-20 mA, 0-5 and 0-10 Vdc
  • NEMA 4X (IP65) enclosure
  • Pushbutton and remote zeroing terminal
  • Uni-directional or bi-directional pressure range selection switch
  • High / low port swap switch to solve incorrect plumbing for differential
  • Normal or slow surge damping switch to prevent false alarms and reduce noise
  • Output polarity reverse switch
Gauge pressure transmitter Wet/Wet differential pressure transmitter c/w LCD
Gauge pressure transmitter Wet/Wet differential
pressure transmitter c/w LCD


APPLICATIONS

  • Pump Monitoring
  • Filter Monitoring
  • Chiller Monitoring
  • HVAC Systems

DESCRIPTION
The Wet-Wet pressure transmitter is designed with dual sensors that enable it to accept high differential pressures in the ranges of 5PSI to 500PSI. All models can handle overload pressure 2X the maximum full scale range and burst pressure is 5X the maximum full scale range.

The gage pressure transmitter is designed with a single sensor that enables it to accept high pressures in the ranges of 5PSI to 500PSI. All models can handle overload pressure 2X the maximum full scale range and burst pressure is 5X the maximum full scale range.

Features include field selectable pressure ranges and output signal types for the most flexible applications. Typical HVAC applications include monitoring of water differential and gage pressure. The output signal is factory calibrated and temperature compensated for the highest start-up accuracy.

Ensure that the maximum individual port pressure does not exceed the maximum pressure range of the unit. For example, the maximum individual port pressure on a WPD-102 is 100 PSI. Exceeding this may damage the sensors and WILL give erroneous readings.
