DPB07S15

Available: In Stock
Rs. 24,705.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

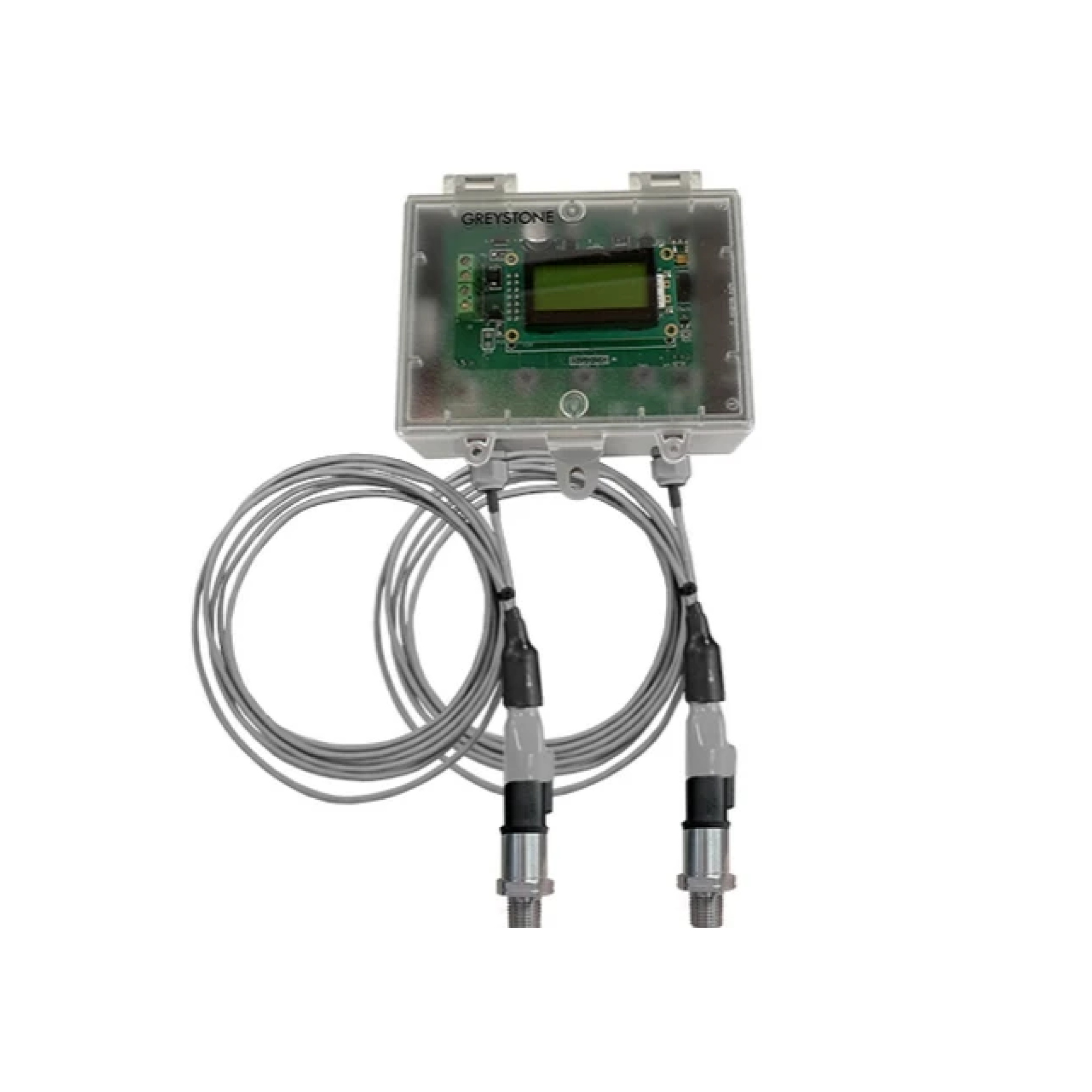

Greystone Differential Pressure Transmitter DPB07S15: designed for differential pressure ranges up to 10 Bar for non corrosive liquid media or water. With dual remote sensors, field-selectable pressure ranges, and factory-calibrated, temperature-compensated output signals, it offers ultimate flexibility and accuracy.

Specifications:

POWER SUPPLY 24 Vac/dc ±10% (non-isolated, half-wave rectified)
CONSUMPTION 75 mA max @ 24 Vdc
OUTPUT SIGNAL 4-20 mA sourcing, 0-5/0-10 Vdc (switch selectable)
OUTPUT DRIVE Current: 550 Ω max
Voltage: 10,000 Ω min
PROTECTION CIRCUITRY Reverse voltage protected, transient protected
LCD DISPLAY 35mm x 15mm (1.4” x 0.6”), 2 line x 8 character
ACCURACY ±1% F.S. of selected range (range 4 is ± 2% F.S.) @ 22°C (72°F) including hysteresis, non-linearity and repeatability
STABILITY ±0.25% FS typical (1 year)
PRESSURE RANGES 4 per model (menu selectable)
MEDIA COMPATIBILITY 17-4 PH stainless steel
PROOF PRESSURE 2X highest range per model
BURST PRESSURE 20X highest range per model
MAXIMUM LINE PRESSURE = highest model range
PRESSURE CYCLES >100 million
SURGE DAMPENING 1-60 seconds averaging (menu selectable)
ZERO ADJUST Push-button and remote input
SENSOR OPERATING RANGE -40 to 105°C (-40 to 221°F)
OPERATING ENVIRONMENT 0 to 50°C (32 to 122°F), 10 to 90 %RH non-condensing
PRESSURE CONNECTION 1/4” NPT male
SENSOR HOUSING IP67
REMOTE SENSOR CABLE S: FT-6 plenum rated cable
A: Armored Flexible S/S
WIRING CONNECTION 14-22 AWG screw terminal block
ENCLOSURE B: Polycarbonate, UL94-V0, IP65 (NEMA 4X)
F: Same as B with thread adapter (1/2” NPT to M16) and cable gland fitting
WEIGHT 450g (15.9 oz) - Including remote cables and sensors
APPROVALS CE, RoHS

Greystone Differential Pressure Transmitter DPB07S15: designed for differential pressure ranges up to 10 Bar for non corrosive liquid media or water. With dual remote sensors, field-selectable pressure ranges, and factory-calibrated, temperature-compensated output signals, it offers ultimate flexibility and accuracy.

Specifications:

POWER SUPPLY 24 Vac/dc ±10% (non-isolated, half-wave rectified)
CONSUMPTION 75 mA max @ 24 Vdc
OUTPUT SIGNAL 4-20 mA sourcing, 0-5/0-10 Vdc (switch selectable)
OUTPUT DRIVE Current: 550 Ω max
Voltage: 10,000 Ω min
PROTECTION CIRCUITRY Reverse voltage protected, transient protected
LCD DISPLAY 35mm x 15mm (1.4” x 0.6”), 2 line x 8 character
ACCURACY ±1% F.S. of selected range (range 4 is ± 2% F.S.) @ 22°C (72°F) including hysteresis, non-linearity and repeatability
STABILITY ±0.25% FS typical (1 year)
PRESSURE RANGES 4 per model (menu selectable)
MEDIA COMPATIBILITY 17-4 PH stainless steel
PROOF PRESSURE 2X highest range per model
BURST PRESSURE 20X highest range per model
MAXIMUM LINE PRESSURE = highest model range
PRESSURE CYCLES >100 million
SURGE DAMPENING 1-60 seconds averaging (menu selectable)
ZERO ADJUST Push-button and remote input
SENSOR OPERATING RANGE -40 to 105°C (-40 to 221°F)
OPERATING ENVIRONMENT 0 to 50°C (32 to 122°F), 10 to 90 %RH non-condensing
PRESSURE CONNECTION 1/4” NPT male
SENSOR HOUSING IP67
REMOTE SENSOR CABLE S: FT-6 plenum rated cable
A: Armored Flexible S/S
WIRING CONNECTION 14-22 AWG screw terminal block
ENCLOSURE B: Polycarbonate, UL94-V0, IP65 (NEMA 4X)
F: Same as B with thread adapter (1/2” NPT to M16) and cable gland fitting
WEIGHT 450g (15.9 oz) - Including remote cables and sensors
APPROVALS CE, RoHS
