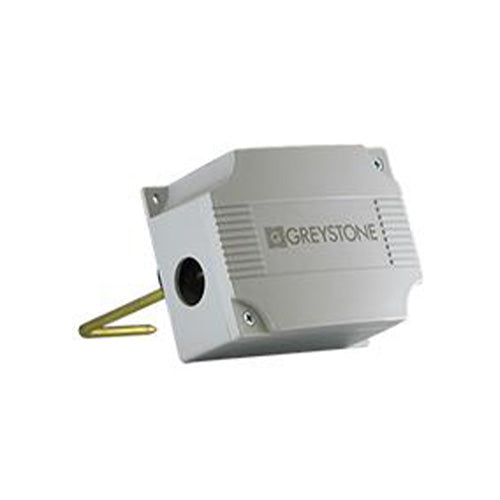

LP3 Series - Low Pressure Transmitters

Available: In Stock
Rs. 1.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

FEATURES

  • Ranges 1" W.C. to 20" W.C. or 250 to 2000 Pa
  • Four variable jumper selectable pressure ranges, W.C. & Pa.
  • Jumper selectable 2 wire current and 3 wire voltage outputs standard
  • 24 Vac/dc power supply standard
  • Available options include LCD display and integrated static probe
LP2 c/w LCD display LP2 c/w LCD & integrated static probe
LP3 c/w LCD display LP3 c/w
integrated static probe


APPLICATIONS

  • HVAC/VAV
  • Air Flow Monitoring
  • Hydraulic Pressures
  • Process Control
  • Drop Across Air Filters
  • Pneumatic Pressures

DESCRIPTION
The LP3 Low Pressure Transmitter can be used to measure positive, negative or differential pressure in the ranges of 1.00” W.C. to 20” W.C. or 250 to 2000 Pa. The piezoresistive sensor is ideal for monitoring the pressure for air or other clean inert gas and is limited only to those media which will not attack polyetherimide, silicon, fluorosilicone, silicone, EPDM and neoprene seals.

The LP3 features field selectable pressure ranges and output signal types for the most flexible applications. Typical HVAC applications include monitoring of filter differential pressure or VAV applications. The output signal is factory calibrated and temperature compensated for highest startup accuracy and trouble-free operation. Available options include LCDs and integrated static pressure probes.

FEATURES

  • Ranges 1" W.C. to 20" W.C. or 250 to 2000 Pa
  • Four variable jumper selectable pressure ranges, W.C. & Pa.
  • Jumper selectable 2 wire current and 3 wire voltage outputs standard
  • 24 Vac/dc power supply standard
  • Available options include LCD display and integrated static probe
LP2 c/w LCD display LP2 c/w LCD & integrated static probe
LP3 c/w LCD display LP3 c/w
integrated static probe


APPLICATIONS

  • HVAC/VAV
  • Air Flow Monitoring
  • Hydraulic Pressures
  • Process Control
  • Drop Across Air Filters
  • Pneumatic Pressures

DESCRIPTION
The LP3 Low Pressure Transmitter can be used to measure positive, negative or differential pressure in the ranges of 1.00” W.C. to 20” W.C. or 250 to 2000 Pa. The piezoresistive sensor is ideal for monitoring the pressure for air or other clean inert gas and is limited only to those media which will not attack polyetherimide, silicon, fluorosilicone, silicone, EPDM and neoprene seals.

The LP3 features field selectable pressure ranges and output signal types for the most flexible applications. Typical HVAC applications include monitoring of filter differential pressure or VAV applications. The output signal is factory calibrated and temperature compensated for highest startup accuracy and trouble-free operation. Available options include LCDs and integrated static pressure probes.
