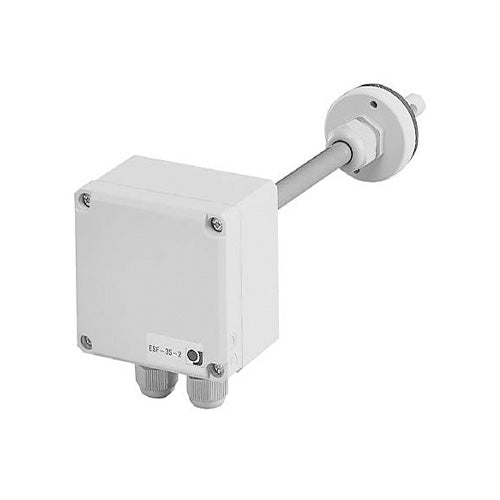

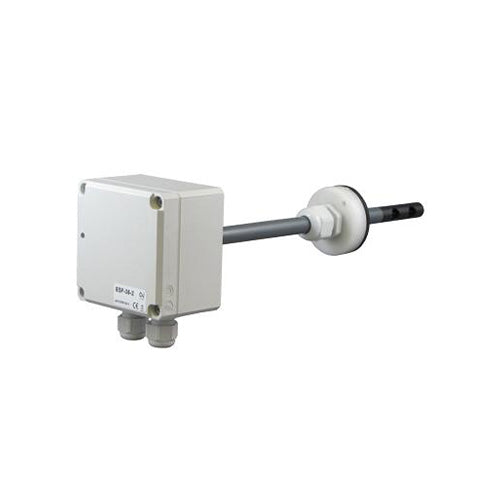

Greystone Duct Airflow Transmitter ESF-35-2

Available: In Stock
Rs. 1.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

FEATURES

  • Converts airspeed into a 4 - 20mA or a 0 - 10 VDC signal
  • Linear output signal
  • Fully electronic registration of airflow
  • AC or DC voltage supply
  • Compensates for changes of air temperature
  • Telescopic sensor facilitates installation
  • Temperature output signal 0 - 10 VDC
  • Fuse Protected
  • Made with corrosion resistant material

APPLICATIONS

The ESF-35-2 airflow transmitter can be used in a wide range of applications such as:

  • Measurements of airflow speed via PLC/outstation/EMS
  • Regulation of airflow speed
  • Monitoring of airflow speed

INSTALLATION
The airflow transmitter ESF-35-2 is installed in such a way that the current of air passes through the gap of the sensor head. Conductors to and from the transducer should be kept isolated from high-power conductors where powerful transient voltage spikes may appear.

FUNCTION
The ESF-35-2 transmitter registers the airflow speed according to a thermal principle based on the fact that the cooling action of air increases with airspeed. The action is measured and converted to a 4 - 20mA or a 0 - 10 V signal corresponding to airflow speeds from 0 - 8 m/s (0 - 1575 ft/min) or 0 - 16 m/s (0 - 3150 ft/min).

FEATURES

  • Converts airspeed into a 4 - 20mA or a 0 - 10 VDC signal
  • Linear output signal
  • Fully electronic registration of airflow
  • AC or DC voltage supply
  • Compensates for changes of air temperature
  • Telescopic sensor facilitates installation
  • Temperature output signal 0 - 10 VDC
  • Fuse Protected
  • Made with corrosion resistant material

APPLICATIONS

The ESF-35-2 airflow transmitter can be used in a wide range of applications such as:

  • Measurements of airflow speed via PLC/outstation/EMS
  • Regulation of airflow speed
  • Monitoring of airflow speed

INSTALLATION
The airflow transmitter ESF-35-2 is installed in such a way that the current of air passes through the gap of the sensor head. Conductors to and from the transducer should be kept isolated from high-power conductors where powerful transient voltage spikes may appear.

FUNCTION
The ESF-35-2 transmitter registers the airflow speed according to a thermal principle based on the fact that the cooling action of air increases with airspeed. The action is measured and converted to a 4 - 20mA or a 0 - 10 V signal corresponding to airflow speeds from 0 - 8 m/s (0 - 1575 ft/min) or 0 - 16 m/s (0 - 3150 ft/min).
