WFD35

Available: Out of Stock
Rs. 5,000.00

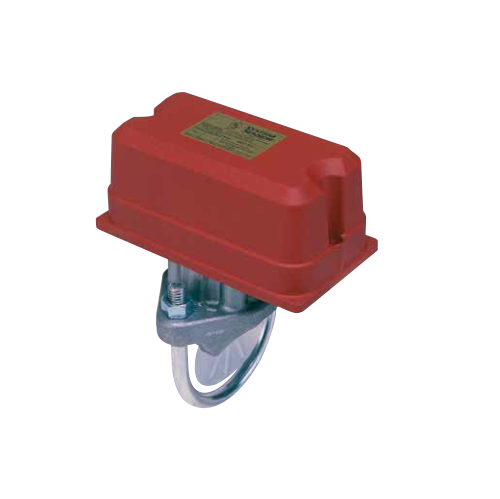

System Sensor waterflow detector WFD35 is suitable for flow detection of Water in sprinklers for fire fighting applications. WFD35 is UL listed, FM Approved, WFD35 can be mounted in horizontal or vertical position.

Specifications :
Pipe Size                    : Suitable for 3.5"
Hole Size                    : 1 1/4"
Flow rate                    : 4 to 10 GPM
Static Pressure rating : 450 PSI
Max. surge                 : 18 FPS
Conduit entrences     : Two opening for 1/2" conduit
Contact ratings          : Two set of SPDT (Form C), 10A, 250VAC
Compatible pipe        : Steel pipe, Schedule 10 through 40
Operating temp.        : 0 to 49 deg C
Enclosure rating        : NEMA 4 suitable for indoor/outdoor
Cover Tamper Switch : Optional Part no. 546-7000
Service use                : Automatic sprinkler NFPA-13
Shipping Weight       : 4.7 lbs

System Sensor waterflow detector WFD35 is suitable for flow detection of Water in sprinklers for fire fighting applications. WFD35 is UL listed, FM Approved, WFD35 can be mounted in horizontal or vertical position.

Specifications :
Pipe Size                    : Suitable for 3.5"
Hole Size                    : 1 1/4"
Flow rate                    : 4 to 10 GPM
Static Pressure rating : 450 PSI
Max. surge                 : 18 FPS
Conduit entrences     : Two opening for 1/2" conduit
Contact ratings          : Two set of SPDT (Form C), 10A, 250VAC
Compatible pipe        : Steel pipe, Schedule 10 through 40
Operating temp.        : 0 to 49 deg C
Enclosure rating        : NEMA 4 suitable for indoor/outdoor
Cover Tamper Switch : Optional Part no. 546-7000
Service use                : Automatic sprinkler NFPA-13
Shipping Weight       : 4.7 lbs
