PSM-550-B4-41-C-D

Available: In Stock
Rs. 2,090.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

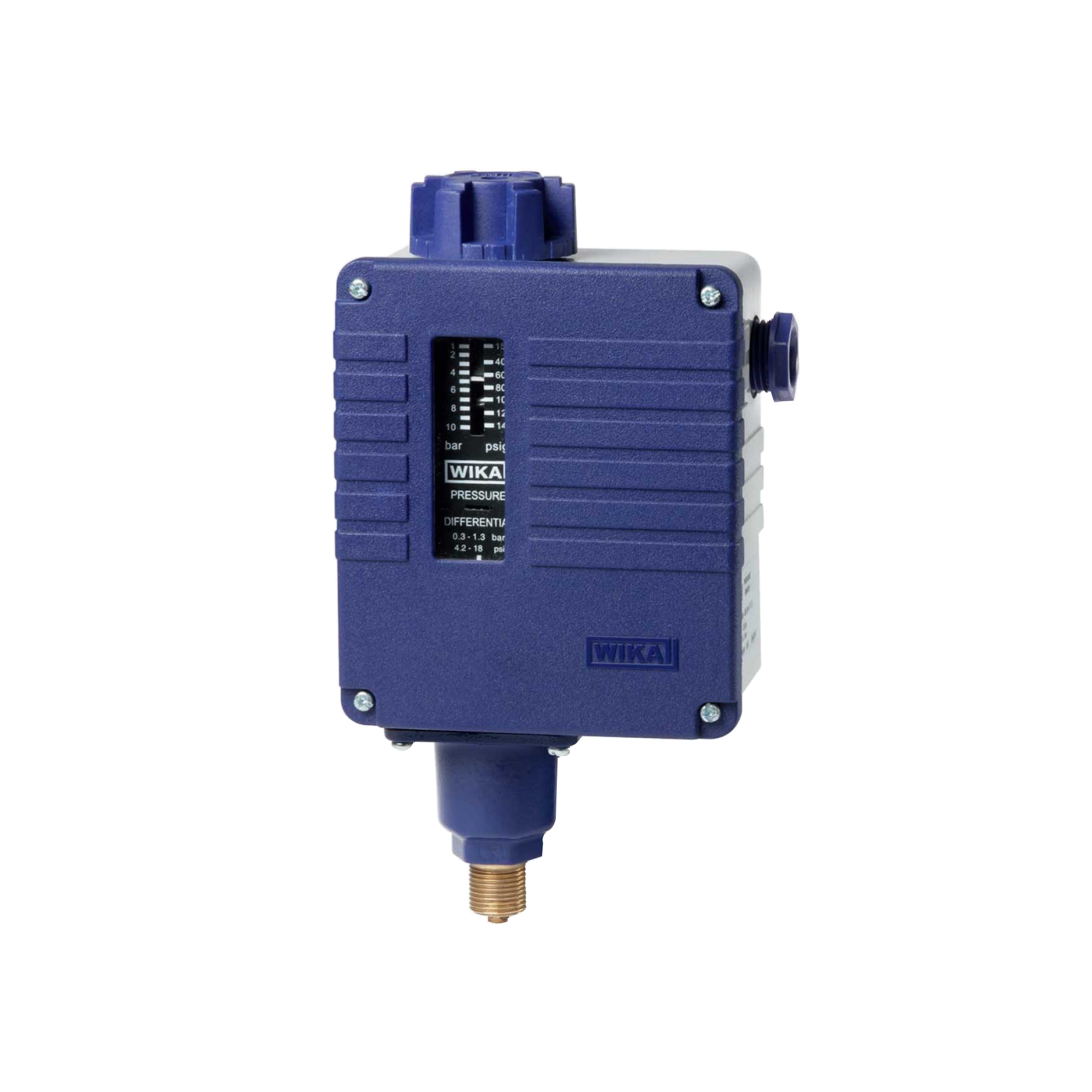

Wika Indfos Pressure Switch PSM-550-B4-41-C-D :

The PSM-550-B4-41-C-D is a pressure switch for industrial control and monitoring. It handles loads up to AC 230V, 10A, and works with non-corrosive media like oil, water, and air. Applications include pumps, lubrication systems, and hydraulic systems.

Features include:

  • ≤ 1% non-repeatability and various pressure setting ranges
  • Sensing Element :304 SS Bellows with brass pressure connector
  • Switching : 1 SPDT
  • Rating : 15A 250 VAC
  • Connection : 3/8" BSP
Old Model New Model  Setting Range Diff. Range Max.Pressure
RT-1 SB   PSM-550-C1-41-C-D (-) 0.8 - 5 Bar  0.5 - 2 Bar 25 Bar
RT-121 SB  PSM-550-V1-41-C-D  (-) 1 - 0 Bar  0.09 - 0.4 Bar 7 Bar
RT-112 SB  PSM-550-B1-41-C-D 0.1 - 1.1 Bar 0.07 - 0.16 Bar 7 Bar
RT-110 SB   PSM-550-B2-41-C-D 0.2 - 3 Bar 0.12 - 0.75 Bar 7 Bar
RT-200 SB PSM-550-B3-41-C-D 0.2 - 6 Bar 0.25 - 1.2 Bar 25 Bar
RT-116 SB PSM-550-B4-41-C-D 1 - 10 Bar 0.3 - 1.3 Bar  25 Bar
RT-5 SB   PSM-550-B6-41-C-D 4 - 17 Bar  1.2 - 4 Bar 25 Bar
RT-117 SB  PSM-550-B7-41-C-D 10 - 30 Bar 1 - 4 Bar 45 Bar
RT-18 SB  PSM-550-B5-41-C-D 2 - 17 Bar 0.3 - 2 Bar 25 Bar

Wika Indfos Pressure Switch PSM-550-B4-41-C-D :

The PSM-550-B4-41-C-D is a pressure switch for industrial control and monitoring. It handles loads up to AC 230V, 10A, and works with non-corrosive media like oil, water, and air. Applications include pumps, lubrication systems, and hydraulic systems.

Features include:

  • ≤ 1% non-repeatability and various pressure setting ranges
  • Sensing Element :304 SS Bellows with brass pressure connector
  • Switching : 1 SPDT
  • Rating : 15A 250 VAC
  • Connection : 3/8" BSP
Old Model New Model  Setting Range Diff. Range Max.Pressure
RT-1 SB   PSM-550-C1-41-C-D (-) 0.8 - 5 Bar  0.5 - 2 Bar 25 Bar
RT-121 SB  PSM-550-V1-41-C-D  (-) 1 - 0 Bar  0.09 - 0.4 Bar 7 Bar
RT-112 SB  PSM-550-B1-41-C-D 0.1 - 1.1 Bar 0.07 - 0.16 Bar 7 Bar
RT-110 SB   PSM-550-B2-41-C-D 0.2 - 3 Bar 0.12 - 0.75 Bar 7 Bar
RT-200 SB PSM-550-B3-41-C-D 0.2 - 6 Bar 0.25 - 1.2 Bar 25 Bar
RT-116 SB PSM-550-B4-41-C-D 1 - 10 Bar 0.3 - 1.3 Bar  25 Bar
RT-5 SB   PSM-550-B6-41-C-D 4 - 17 Bar  1.2 - 4 Bar 25 Bar
RT-117 SB  PSM-550-B7-41-C-D 10 - 30 Bar 1 - 4 Bar 45 Bar
RT-18 SB  PSM-550-B5-41-C-D 2 - 17 Bar 0.3 - 2 Bar 25 Bar
