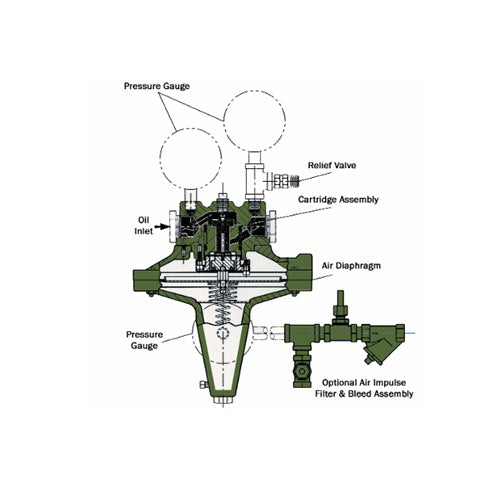

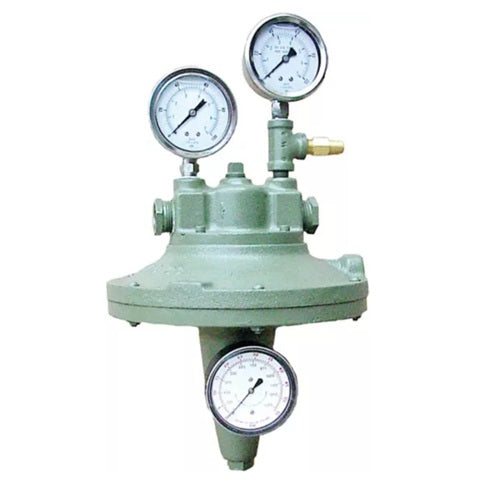

Hauck MRO oil-air ratio regulators are designed to serve as the essential control device in a cross connected oil-air delivery system. They support applications requiring wide turndown and/or low flow rates and repeatability. The MRO is engineered to function properly over a wide range of air pressures and may be used on either single or multiple burner applications. A constant oil pressure is required at the inlet of the regulator.
The Hauck MRO ratio regulator can be used with No. 1 through No. 6 fuel oil. It is suitable for use with oil temperatures up to 270ºF (132ºC).
| Model | Oil Connection | Oil Capacity LPH | ||
| NPT | DN | Min. | Max. | |
| MRO 105 | 1/2 | 15 | 2.8 | 189 |
| MRO 107 | 3/4 | 20 | 7.6 | 379 |
| MRO 207 | 3/4 | 20 | 23 | 1760 |
Hauck MRO oil-air ratio regulators are designed to serve as the essential control device in a cross connected oil-air delivery system. They support applications requiring wide turndown and/or low flow rates and repeatability. The MRO is engineered to function properly over a wide range of air pressures and may be used on either single or multiple burner applications. A constant oil pressure is required at the inlet of the regulator.
The Hauck MRO ratio regulator can be used with No. 1 through No. 6 fuel oil. It is suitable for use with oil temperatures up to 270ºF (132ºC).
| Model | Oil Connection | Oil Capacity LPH | ||
| NPT | DN | Min. | Max. | |
| MRO 105 | 1/2 | 15 | 2.8 | 189 |
| MRO 107 | 3/4 | 20 | 7.6 | 379 |
| MRO 207 | 3/4 | 20 | 23 | 1760 |
View Product Catalog
