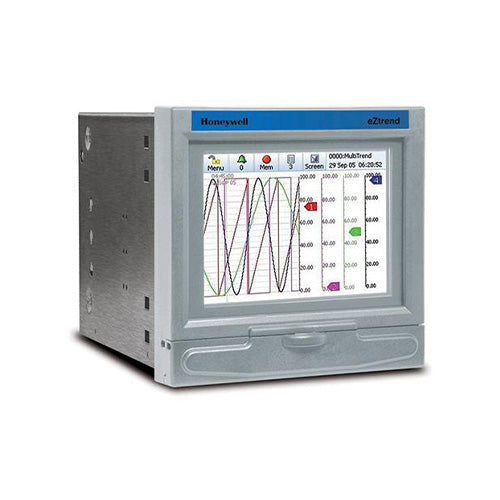

Honeywell Paperless Recorder Eztrend GR

Available: In Stock
Rs. 1.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

Display


• 5.5” Colour Active TFT - with more than 256,000
colours makes it easy to interpret process data and
take action with the intuitive bar charts, digital values
or trends displays. A screen saver function can be
set from 1 to 720 minutes to extend the life of the
backlight.
• Touch Screen - the heavy duty durable touch
screen provides easy data entry and rapid navigation
though the menus.
• Help Files - A complete contextual help system can
be accessed and visualised on the screen of the
recorder.


Communications


• Ethernet Connectivity - the Ethernet (DHCP
standard) connection, with support for various
protocols, provides unlimited connectivity to local
area networks (LANs). The standard Ethernet
interface makes networking of the recorder to a LAN
or the world wide web fast and convenient. Dynamic
Host Configuration Protocol (DHCP) automatically
acquires the settings (IP address) for network
communications from a DHCP server.
• Simple Network Time Protocol (SNTP) - The
recorder can be synchronised over the ethernet
network via a SNTP client or synchronise other
recorders via a Server.
• Web Server - with the recorder connected to a LAN,
all process variables, alarm and messages can be
viewed from an internet browser; values are
automatically refreshed.


Data Storage


Internal Data Storage - 70MB to 400MB of expandable
internal non-volatile flash memory is available for data
storage and chart history.

Data Export - Removable USB flash storage device.
Data is stored in a secure binary encrypted format, with
the recorder’s configurations, providing added security of
the data files.
Removable USB flash storage devices


External USB Devices


The recorder has two USB host ports, one at the front
(standard) and one at the rear available on the
Communications card (option). This is for attaching
external USB devices such as a keyboard, mouse or a
USB data storage key. The keyboard and mouse can be
used to navigate the recorder’s screen and enter text.


Remote Viewer


Extends the user interface of the recorder onto the
desktop PC. Providing remote viewing of the unit
launched from a web browser. Full remote control is
available as an option. Compatible with Microsoft™
Internet explorer 6 and higher.


Security


• Total Data Integrity - data is stored in secure
encrypted files making it easy to retrieve the data
dependent on process information. Data is automatically
recognized without having to remember file names.
• Password Protection - Up to 4 levels of password
protection with up to 50 different users are available.
Multiple levels f password protection and an audit
trail of actions enhance the security of the data.
• Extended Security System (option) - ESS provides
extended features including entry of unique User ID’s
and associated passwords, time-out of password
entry, password expiration, and traceability of user
actions. ESS is compatible with the requirements of
21CFR part 11.
• Password Network Synchronisation - Password
can be synchronised over the network, a recorder
can be designated as a master of a password group
and other recorders can be added to that group as
slaves, the master will ensure all passwords are
synchronised with all recorders in it’s group.
eZtrend® QXe 4


Modbus Master/Slave


The recorder can communicate with up to 32 slave
devices on both RS485 and/or Ethernet at a maximum
poll rate of 1 second (slowest 1 hour), with each slave up
to 8 “transactions” can be performed where a transaction
can be retrieving 1 or more registers from a slave or
sending one or more Pens to a slave.


Reports


Reports can be generated manually or on a periodical
basis using event system to show daily/weekly/monthly
totals, max mins, averages etc., the reports can be
printed, e-mailed as attachments or exported to external
media. The reports will be in RTF format for use in MS
Word or other compatible word processors.


Events/Counters (option)


Certain conditions or operations can be set up and
logged according to the time and date of the occurrence.
Subsequently events can be reviewed in a list or
represented on a graph. Up to 16 User Counters are
available and can be used as a part of the Events
system. User Counters can be set up as a Cause or an
Effect of an Event. Preset Markers can be configured and
used when applying a Mark to the chart through the event
system, the alert system or manually.


Concurrent Batch Mode (option)


Batch enhances the management of data collected in
non-continuous process, known as batch processing,
used in thermal treatment, sterilisation, food processing
and chemical reactions. Batch mode has changed to
allow concurrent batches, where each batch is associated
with a group, so all pens within Group 1 will belong to the
batch that is controlled by Group 1. Batch features
include Pause chart when batch stopped, Batch Logging
control, List driven data fields, Automated batch counters,
Event driven batch control, Updated control and
feedback, Batch mode State and Count
inscripts/embedded variables.


AMS2750 Process Mode (option)


Provides on-line monitoring in the process recorder to
alert the user to potential AMS2750 non-compliance
issues. Monitors and alerts the user concerning - days
until next SAT, days until next TUS, days until next
control T/C change out and days until the recorder
requires calibration. The recorder also provides an
overview of T/C usage for all survey T/C’s providing a
colour coded for early warning screen (5 day expiration).
