DBC2000

Available: In Stock
Rs. 24,000.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

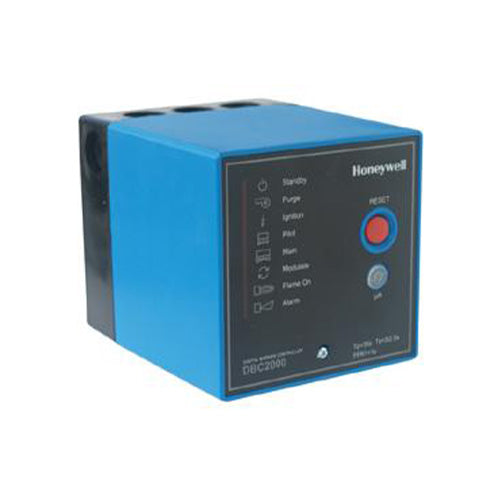

Honeywell Burner Sequence Controller DBC2000 is programmed to provide a level of safety, functional capability and features beyond the capacity of conventional controls.

FEATURES

· Employs a plug-in mounting method
· Uses a microprocessor to improve performance
· The progress of the sequence can be easily determined by status indicator LEDs
· All models have a 4-wire firing rate switching circuit to control an air damper or other auxiliary equipment during startup of the burner.
· Safe start check before and during pre-purge
· Safety shutdown occurs on
- malfunction of the burner controller
- failure to ignite the pilot burner or main burner
- loss of flame during run period
- opening of air flow switch during pre-purge, start-up, run and post-purge period
- flame signal detection during standby or prepurge period
· Remote communication (Enhanced model only)
· Valve Proofing System (Enhanced model only)

Mains input: Supply voltage
220 to 240Vac -15% +10% 50/60Hz or
110 to 120Vac -15% +10% 50/60Hz


Allowable ambient Temperature & Humidity
-10 °C; +60°C
90% RH max. at 40°C (non condensing)


Approvals
CE certification to standard EN298:2003
CE certification to standard EN230:2005


Additional approvals:
Lloyds (planned)
EN746-2 compliant
PED (planned)
SIL2 (planned)
Apave (planned)


Power consumption
9VA


Protection class
IP40


Vibration
0.5G


Mounting
Plug-in mounting method using sub-base


Dimensions
103mm x 103mm x 124mm (W x D x H) incl. sub base


Status indicator LEDs
- Standby
- Purge
- Ignition
- Pilot
- Main
- Modulate
- Flame On
- Alarm

Honeywell Burner Sequence Controller DBC2000 is programmed to provide a level of safety, functional capability and features beyond the capacity of conventional controls.

FEATURES

· Employs a plug-in mounting method
· Uses a microprocessor to improve performance
· The progress of the sequence can be easily determined by status indicator LEDs
· All models have a 4-wire firing rate switching circuit to control an air damper or other auxiliary equipment during startup of the burner.
· Safe start check before and during pre-purge
· Safety shutdown occurs on
- malfunction of the burner controller
- failure to ignite the pilot burner or main burner
- loss of flame during run period
- opening of air flow switch during pre-purge, start-up, run and post-purge period
- flame signal detection during standby or prepurge period
· Remote communication (Enhanced model only)
· Valve Proofing System (Enhanced model only)

Mains input: Supply voltage
220 to 240Vac -15% +10% 50/60Hz or
110 to 120Vac -15% +10% 50/60Hz


Allowable ambient Temperature & Humidity
-10 °C; +60°C
90% RH max. at 40°C (non condensing)


Approvals
CE certification to standard EN298:2003
CE certification to standard EN230:2005


Additional approvals:
Lloyds (planned)
EN746-2 compliant
PED (planned)
SIL2 (planned)
Apave (planned)


Power consumption
9VA


Protection class
IP40


Vibration
0.5G


Mounting
Plug-in mounting method using sub-base


Dimensions
103mm x 103mm x 124mm (W x D x H) incl. sub base


Status indicator LEDs
- Standby
- Purge
- Ignition
- Pilot
- Main
- Modulate
- Flame On
- Alarm
