EXT-KA-SQ100

Available: In Stock
Rs. 78,750.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

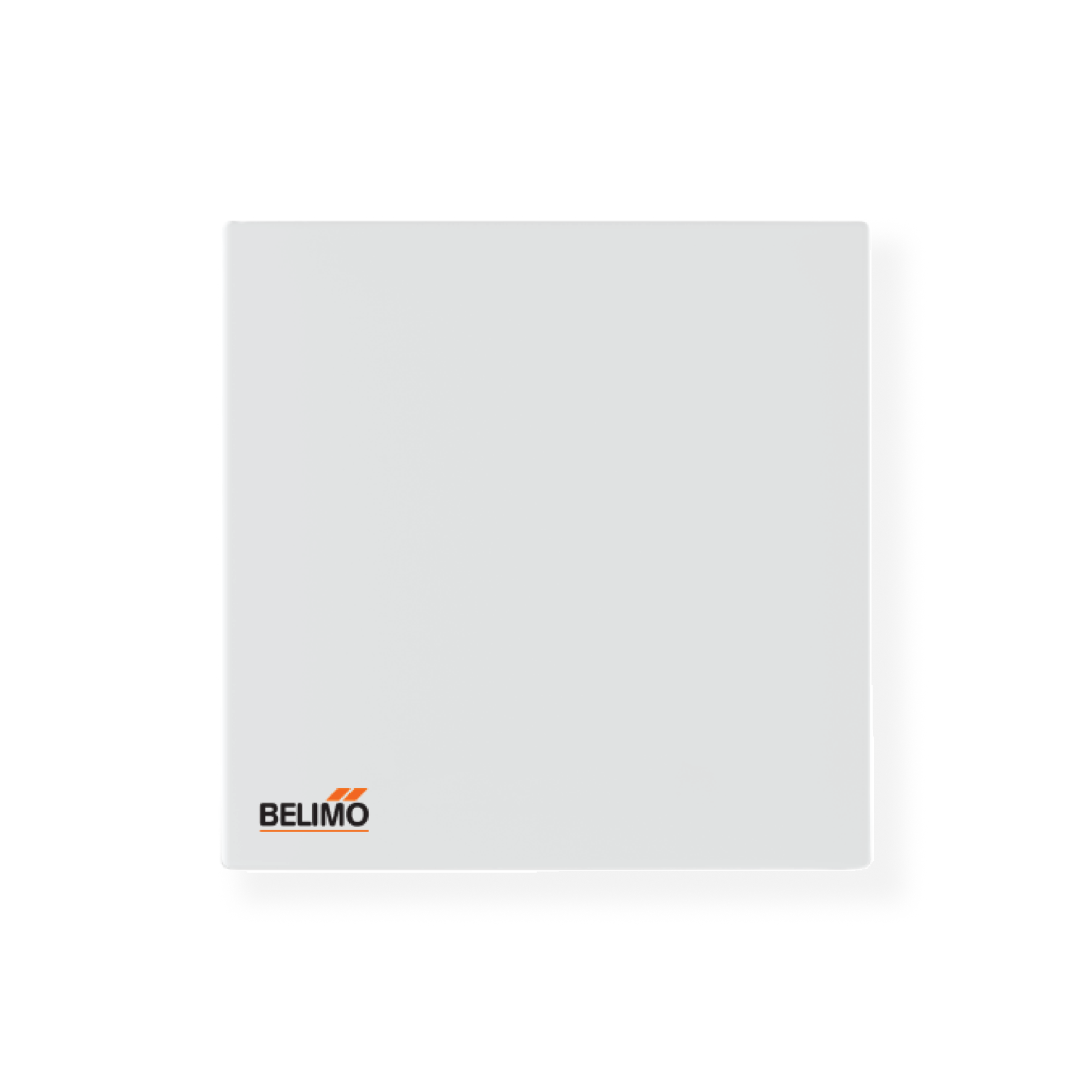

Belimo EXT-KA-SQ100 Indoor Air Quality Sensor elevates IAQ with real-time monitoring of Temperature, Humidity, CO₂, PM2.5, PM10, and TVOC. Boost LEED, WELL, and RESET certifications. Enjoy easy installation, multiple power options, and seamless connectivity. Breathe easy, live better!

It works on single phase power supply 100-240VAC.

Specifications:

Data bus communication  Communication  Modbus RTU
Local and cloud MQTT Open API
Cloud
Functional data Coverage area Area: 325 m² [3500 ft²]
Measuring data Measured values CO₂
TVOC
PM2.5, PM10 Relative humidity Temperature
Specification Particulate Matter Mesurement range Mass concentration range: 0...1000μg/m³ PM2.5 mass concentration size range: 0.3...2.5 μg/m³
Accuracy ±3 μg/m³ (0to30μg/m³);  ±10% m.v. (30...1000μg/m³)
Typical response time ≤10 s
Sensor output resolution 1μg/m³
Sensor technology Laser particle sensor (light scattering)
Specification TVOC Mesurement range 0...60000 ppb
Accuracy ±15% ±8 ppb
Typical startup time 0.4 ms
Sensor output resolution 1 ppb
Sensor technology Multi-pixel metal oxide sensor (MOx)
Specification CO₂  Mesurement range 400...2000 ppm
Up to 10000 ppm extended range
Accuracy ±3% m.v. ±50 ppm
Typical response time 120 s by 90%
Sensor output resolution 1 ppm
Sensor technology Non-dispersive infrared (NDIR)
Specification Temperature Mesurement range  -20...100°C
Accuracy ±1°C
Typical response time >2 s
Sensor output resolution 0.01°C
Long Term Drift <0.03°C [0.054°F]/yr (under normal RH/T operating range)
Specification Humidity Mesurement range 0...99% RH
Accuracy ±5% RH
Typical response time >8 s (depends on the surrounding surface and the airflow in the final application environment)
Sensor output resolution 0.01% RH
Long Term Drift <0.25% RH/yr
Safety data  EU Conformity CE Marking
Ambient humidity Max. 95% RH, non-condensing
Ambient temperature 0...50°C [32...122°F]

Belimo EXT-KA-SQ100 Indoor Air Quality Sensor elevates IAQ with real-time monitoring of Temperature, Humidity, CO₂, PM2.5, PM10, and TVOC. Boost LEED, WELL, and RESET certifications. Enjoy easy installation, multiple power options, and seamless connectivity. Breathe easy, live better!

It works on single phase power supply 100-240VAC.

Specifications:

Data bus communication  Communication  Modbus RTU
Local and cloud MQTT Open API
Cloud
Functional data Coverage area Area: 325 m² [3500 ft²]
Measuring data Measured values CO₂
TVOC
PM2.5, PM10 Relative humidity Temperature
Specification Particulate Matter Mesurement range Mass concentration range: 0...1000μg/m³ PM2.5 mass concentration size range: 0.3...2.5 μg/m³
Accuracy ±3 μg/m³ (0to30μg/m³);  ±10% m.v. (30...1000μg/m³)
Typical response time ≤10 s
Sensor output resolution 1μg/m³
Sensor technology Laser particle sensor (light scattering)
Specification TVOC Mesurement range 0...60000 ppb
Accuracy ±15% ±8 ppb
Typical startup time 0.4 ms
Sensor output resolution 1 ppb
Sensor technology Multi-pixel metal oxide sensor (MOx)
Specification CO₂  Mesurement range 400...2000 ppm
Up to 10000 ppm extended range
Accuracy ±3% m.v. ±50 ppm
Typical response time 120 s by 90%
Sensor output resolution 1 ppm
Sensor technology Non-dispersive infrared (NDIR)
Specification Temperature Mesurement range  -20...100°C
Accuracy ±1°C
Typical response time >2 s
Sensor output resolution 0.01°C
Long Term Drift <0.03°C [0.054°F]/yr (under normal RH/T operating range)
Specification Humidity Mesurement range 0...99% RH
Accuracy ±5% RH
Typical response time >8 s (depends on the surrounding surface and the airflow in the final application environment)
Sensor output resolution 0.01% RH
Long Term Drift <0.25% RH/yr
Safety data  EU Conformity CE Marking
Ambient humidity Max. 95% RH, non-condensing
Ambient temperature 0...50°C [32...122°F]
