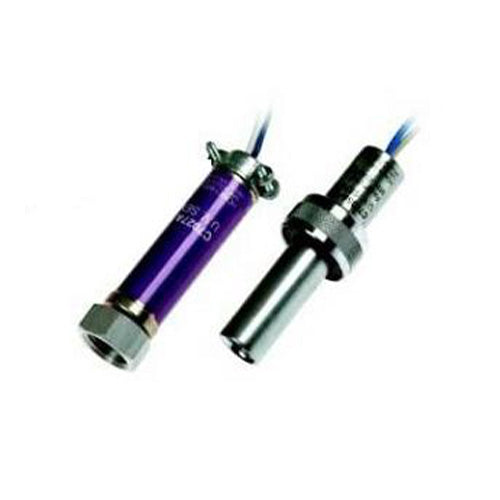

Honeywell UV Flame Sensor C7035

Available: Out of Stock
Rs. 1.00

Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames.
Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.
Approvals: CE approved according to EN298, only in combination with matching Honeywell flame amplifiers and burner controls.
UL/CSA approved for USA, only in combination with matching Honeywell flame amplifiers and burner controls.
AGA approved for Australia, only in combination with matching Honeywell flame amplifiers and burner controls.
Only for intermittent operation. The burner has to recycle at least once per 24 hours.
Models marked "DIN Approved Model" have no CSA/UL marking on the product label and have an insulated cable instead of wires.
Maximum recommended cable length: ca. 50m
Features: Rugged, compact, with encapsulated sensing tube for maximum protection.
Quick and easy installation on standard sight pipe.
Detects UV radiation in the 310nm range of the spectrum.

C7035 with field replaceable UV tube
Mechanical connection: 1"
Cable length: 1,8m
Ambient temperature: -18...121C
Protection class: IP67

Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames.
Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.
Approvals: CE approved according to EN298, only in combination with matching Honeywell flame amplifiers and burner controls.
UL/CSA approved for USA, only in combination with matching Honeywell flame amplifiers and burner controls.
AGA approved for Australia, only in combination with matching Honeywell flame amplifiers and burner controls.
Only for intermittent operation. The burner has to recycle at least once per 24 hours.
Models marked "DIN Approved Model" have no CSA/UL marking on the product label and have an insulated cable instead of wires.
Maximum recommended cable length: ca. 50m
Features: Rugged, compact, with encapsulated sensing tube for maximum protection.
Quick and easy installation on standard sight pipe.
Detects UV radiation in the 310nm range of the spectrum.

C7035 with field replaceable UV tube
Mechanical connection: 1"
Cable length: 1,8m
Ambient temperature: -18...121C
Protection class: IP67
