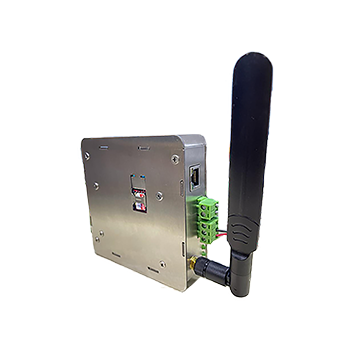

IOT Gateway GW01
- Product SKU: GW01
- Category: Futuristic Technologies, IOT, Trending Products

IOT Gateway GW01 for telemetry and remote monitoring
- Connects to cloud platform through WiFi, Ethernet, 4G LTE / 3G HSPA+ / 2G GSM GPRS Networks (Automatic Fallback to 3G UMTS/HSPA+ /2G GSM GPRS mode in the absence of 4G Network)
- Obtains data through Serial communication from Sensors/ Device controllers / PLCs / HMIs
- Remote monitoring and remote program download of Device controllers / PLCs / HMIs
- Cloud application to manage IIOT CONNECT GW01
- Custom IIOT CONNECT DASHBOARD for your application and to manage Users, History, Alerts on subscription basis
Specifications :
Serial port COM1 : RS485, Modbus RTU
Internet Connectivity : Connects via
- WiFi
- Ethernet, Modbus TCP
- 4G LTE / 3G HSPA+ / 2G GSM GPRS Networks
Geo Location : Built in GNSS Geo Location Detection (GPS, GLONASS)
Antenna : SMA connectors for
- 4G LTE main antenna
- External GPS/GNSS active antenna (Optional)
SIM card Connector : Micro SIM Card Connector ( Push-Pull Type)
Power Supply : 24VDC(12 to 30 VDC)
Power consumption : 4.8 W
Enclosure : Aluminum
Dimension : 110 mm (H) * 130 mm (D) * 35 mm (W)
Mounting : DIN rail
Weight : 400 gms
Operating Temperature : -10°C to 50 °C
Operating Humidity : 10 to 90%RH(Non-condensing)
Storage Temperature : -30°C to 70°C
IOT Gateway GW01 for telemetry and remote monitoring
- Connects to cloud platform through WiFi, Ethernet, 4G LTE / 3G HSPA+ / 2G GSM GPRS Networks (Automatic Fallback to 3G UMTS/HSPA+ /2G GSM GPRS mode in the absence of 4G Network)
- Obtains data through Serial communication from Sensors/ Device controllers / PLCs / HMIs
- Remote monitoring and remote program download of Device controllers / PLCs / HMIs
- Cloud application to manage IIOT CONNECT GW01
- Custom IIOT CONNECT DASHBOARD for your application and to manage Users, History, Alerts on subscription basis
Specifications :
Serial port COM1 : RS485, Modbus RTU
Internet Connectivity : Connects via
- WiFi
- Ethernet, Modbus TCP
- 4G LTE / 3G HSPA+ / 2G GSM GPRS Networks
Geo Location : Built in GNSS Geo Location Detection (GPS, GLONASS)
Antenna : SMA connectors for
- 4G LTE main antenna
- External GPS/GNSS active antenna (Optional)
SIM card Connector : Micro SIM Card Connector ( Push-Pull Type)
Power Supply : 24VDC(12 to 30 VDC)
Power consumption : 4.8 W
Enclosure : Aluminum
Dimension : 110 mm (H) * 130 mm (D) * 35 mm (W)
Mounting : DIN rail
Weight : 400 gms
Operating Temperature : -10°C to 50 °C
Operating Humidity : 10 to 90%RH(Non-condensing)
Storage Temperature : -30°C to 70°C
