TXAPA12CA002

Available: In Stock
Rs. 4,235.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

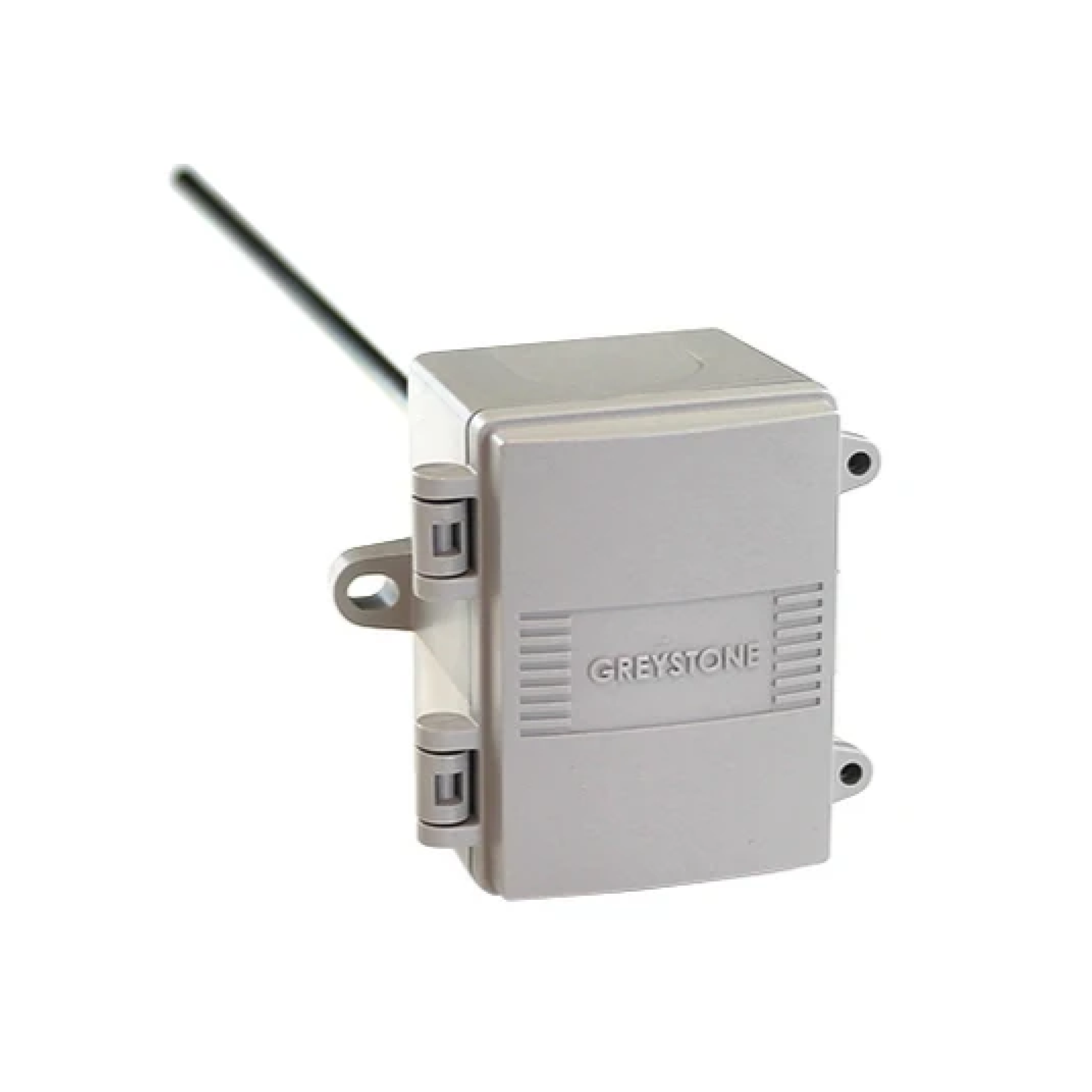

Buy Greystone Duct/Immersion Temperature Transmitter TXAPA12CA002 with precision RTD sensing, high accuracy, and a range of configuration options. Ensure accurate temperature monitoring in various applications. The compact ABS enclosure simplifies installation and offers protection.

Specifications:

SENSOR TYPE 1000 Ω platinum RTD
SENSOR ACCURACY ±0.3°C (±0.54°F) @ 0°C (32°F)
PROBE SENSING RANGE -40 to 100°C (-40 to 212°F)
WIRE MATERIAL PVC insulated, parallel bonded, 22 AWG
PROBE MATERIAL 304 series stainless steel
PROBE DIAMETER 6 mm (0.236”)
STANDARD LENGTHS 50, 100, 150, 200, 300, and 450 mm
(2”, 4”, 6”, 8”, 12”, and 18”)
OUTPUT SIGNAL 4-20 mA current loop, 0-5 Vdc, or 0-10 Vdc (factory configured)
TRANSMITTER ACCURACY ±0.1% of span, including linearity
OUTPUT DRIVE @ 24 VDC Current: 600 Ω maximum
Voltage: 10 KΩ minimum
INTERNAL ADJUSTMENT ZERO and SPAN Pots
POWER SUPPLY 0-5 Vdc: 10-35 Vdc or 10-28 Vac
0-10 Vdc: 15-35 Vdc or 15-28 Vac
4-20 mA: 15-35 Vdc (loop-powered) or 22-28 Vac
CURRENT CONSUMPTION Current: 20 mA
Voltage: 5 mA
MAXIMUM CURRENT (VOLTAGE) 5 mA nominal
MAXIMUM OUTPUT (VOLTAGE) Limited to <5.5 Vdc or 0-5 Vdc, <10.5 for 0-10 Vdc
INPUT VOLTAGE EFFECT Negligible over specified operating range
PROTECTION CIRCUITRY Reverse voltage protected and output limited
AMBIENT OPERATING RANGE -40 to 50°C (-40 to 122°F), 5 to 95 %RH non-condensing
ENCLOSURE A: ABS, UL94-V0, IP65 (NEMA 4X)
E: Same as A, with thread adapter (1/2” NPT to M16), and cable gland fitting
TERMINATION Screw terminal block (14 to 22 AWG)
APPROVALS CE
COUNTRY OF ORIGIN Canada



Ordering:

PRODUCT TXAP All Purpose Duct/Immersion Temperature Transmitter
ENCLOSURE A E ABS, with hinged and gasketed cover
Same as A, with thread adapter and cable gland fitting
SENSOR 12 1000 Ω Platinum, IEC 751, 385 Alpha, thin film
PROBE LENGTH A B C D E F 50mm (2”)
100mm (4”)
150mm (6”)
200mm (8”)
300mm (12”)
450mm (18”)
OUTPUT A D E 4-20 mA
0-5 Vdc
0-10 Vdc
SCALED RANGE 001
002
003
006
*
0 to 35°C (32 to 95°F)
0 to 50°C (32 to 122°F)
0 to 100°C (32 to 212°F)
-50 to 50°C (-58 to 122°F)
Additional ranges available
