Danfoss

BML10 009G0127

Add Your Review
Available: In Stock
Rs. 1,085.00
Enquiry for BML10 009G0127
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

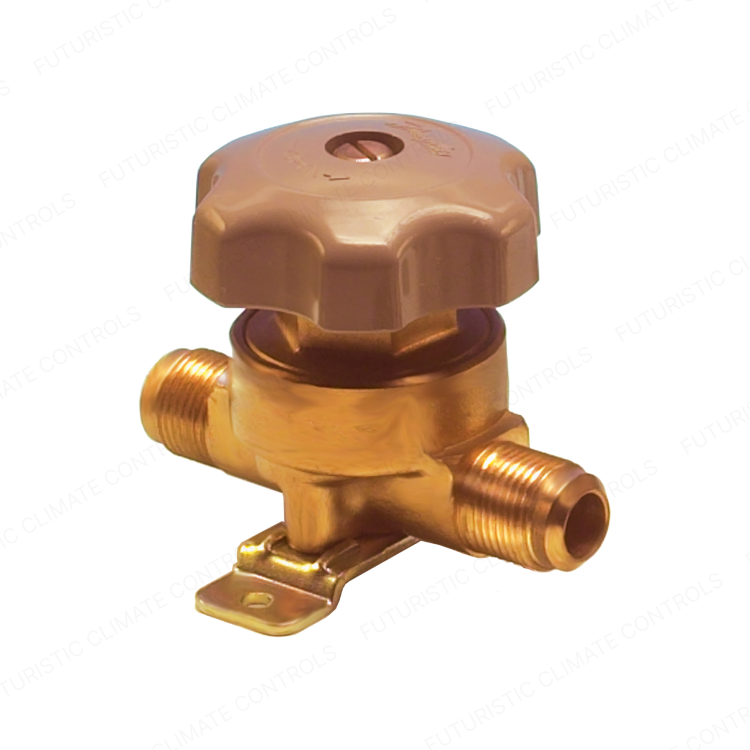

Danfoss Shut-off diaphragm valve BML10 009G0127 is crafted for installation within refrigeration circuits, specifically in the liquid, suction, and hot gas lines. Its primary function is to facilitate the opening and shutting off of the inner refrigerant flow path, achieved through the manual operation of the handwheel.
Dimensions:
Type SAE
Flare		 Flare Thread Hand wheel H3 H5 L L3 B B1 B2 ød Code no.
[inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
BML 6 1/4 7/16-20UNF-2A Yes 46 15 77 — 62 50 50 5 009G0101
BML 6 1/4 No 47 15 77 — 62 — 50 5 009G0115
BMT 6 1/4 Yes 46 19 65 32.5 62 50 50 5 009G0105
BML 10 3/8 5/8-18UNF-2A Yes 49 15 85 — 62 50 50 5 009G0127
BML 12 1/2 3/4-16UNF-2A Yes 56 18 102 — 70 60 56 6 009G0141
BML 15 5/8 7/8-14UNF-2A Yes 66 19 118 — 83 71 69 6 009G0168
BML 18 3/4 1 1/16-14UNS-2A Yes 66 24 130 — 83 71 69 6 009G0183

Danfoss Shut-off diaphragm valve BML10 009G0127 is crafted for installation within refrigeration circuits, specifically in the liquid, suction, and hot gas lines. Its primary function is to facilitate the opening and shutting off of the inner refrigerant flow path, achieved through the manual operation of the handwheel. Dimensions:
Type SAE
Flare		 Flare Thread Hand wheel H3 H5 L L3 B B1 B2 ød Code no.
[inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
BML 6 1/4 7/16-20UNF-2A Yes 46 15 77 — 62 50 50 5 009G0101
BML 6 1/4 No 47 15 77 — 62 — 50 5 009G0115
BMT 6 1/4 Yes 46 19 65 32.5 62 50 50 5 009G0105
BML 10 3/8 5/8-18UNF-2A Yes 49 15 85 — 62 50 50 5 009G0127
BML 12 1/2 3/4-16UNF-2A Yes 56 18 102 — 70 60 56 6 009G0141
BML 15 5/8 7/8-14UNF-2A Yes 66 19 118 — 83 71 69 6 009G0168
BML 18 3/4 1 1/16-14UNS-2A Yes 66 24 130 — 83 71 69 6 009G0183
