VPI46.40F9.5Q

Available: Out of Stock
Rs. 36,000.00

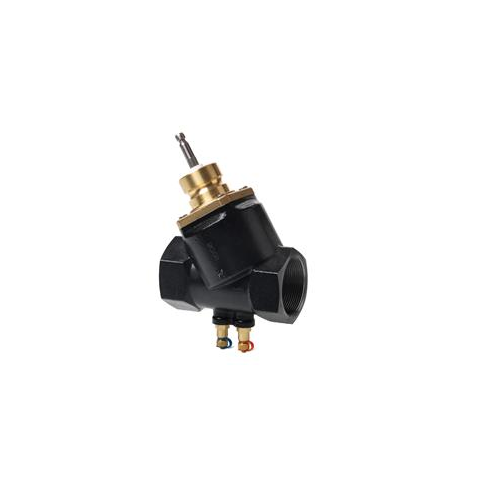

Siemens VPI46.40F9.5Q Combi PICV valves, PN25, DN40, 1370…9500 l/h, pressure test points

Specifications :

Stroke      : 15 mm, To DN 15: 2.5 mm;DN 20: 5 mm;DN 25-32: 5.5 mm;DN 40-50: 15 mm
Leakage rate                : Class IV (0…0.01% of volumetric flow V100)
PN class                       : PN 25
Volumetric flow V        : 9500 l/h
Volumetric flow Vmin  : 1370 l/h
DN                               : 40
Medium                       : Water , Water with anti-freeze
Medium temperature  : 1…120 °C
Ambient temperature  : operation 1…50 °C
Valve characteristic      : Linear
Permissible operating pressure  : 2500 kPa
Material, valve body    : Cast Iron
Material, inside set      : Dezincification resistant brass (DR), CW602N, stainless steel, PPS
Connecting thread      : Rp 1½"
Mounting position      : Upright to 90° inclined
Δpmax                               : 600 kPa
ΔPmin                                : 25 kPa
SAY..P..                         : Δpmax 600 kPa
SAY..P..                         : ΔPmin 25 kPa



Siemens VPI46.40F9.5Q Combi PICV valves, PN25, DN40, 1370…9500 l/h, pressure test points

Specifications :

Stroke      : 15 mm, To DN 15: 2.5 mm;DN 20: 5 mm;DN 25-32: 5.5 mm;DN 40-50: 15 mm Leakage rate                : Class IV (0…0.01% of volumetric flow V100) PN class                       : PN 25 Volumetric flow V        : 9500 l/h Volumetric flow Vmin  : 1370 l/h DN                               : 40 Medium                       : Water , Water with anti-freeze Medium temperature  : 1…120 °C Ambient temperature  : operation 1…50 °C Valve characteristic      : Linear Permissible operating pressure  : 2500 kPa Material, valve body    : Cast Iron Material, inside set      : Dezincification resistant brass (DR), CW602N, stainless steel, PPS Connecting thread      : Rp 1½" Mounting position      : Upright to 90° inclined Δpmax                               : 600 kPa ΔPmin                                : 25 kPa SAY..P..                         : Δpmax 600 kPa SAY..P..                         : ΔPmin 25 kPa
