Y8610U6006/U

Available: In Stock
Rs. 25,900.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

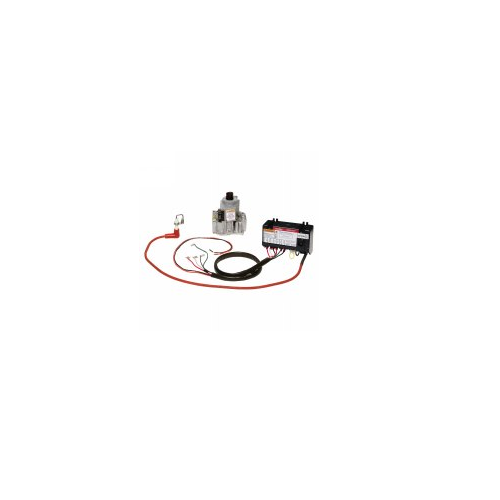

Honeywell Resideo Intermittent Pilot Retrofit Kits Y8610U6006/U save energy by converting atmospheric standing pilot systems to intermittent pilot. Typical applications are gas-fired atmospheric furnaces, boilers and heating appliances.

Specifications :

Dimensions (in.)
3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
Dimensions (mm)
100 mm high x 138 mm wide x 67 mm deep
Includes
VR8304M3558 (1/2 x 3/4; 3.5" setting; 270kBtu/hr at 1 in. p.d.)
Item Type
Product
Electrical Ratings
24 Vac
Frequency
60 Hz
Flame Failure Response Time (sec)
2.0 sec
PrePurge
0 or 30 seconds
Ambient Temperature Range (C)
-40 C to +74 C
Ambient Temperature Range (F)
-40 F to +165 F
Ignition System Type
Intermittent Pilot
Ignition Sequence
Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
Typical Gas Control
VR8204, VR8304
Type of Gas
Natural or LP
Flame Sense
Single Rod or Two Rods
Ignition Source
Internal high voltage spark generator
Ignition Trials To Lockout
continuous retry
Lockout Timing
15 or 90 seconds
Ignition Trial Time (sec)
15 or 90 seconds
Maximum Valve Load @ 24 Vac (Amps)
1A Pilot, 2A Main @ 24Vac
Typical Ignition Hardware
Q345, Q3451
