CT6M-1P4

Available: In Stock
  • Product SKU: CT6M-1P4
  • Category: Autonics
Rs. 4,000.00
Please wait...
Your Inquiry has been sent! Our sales representative will contact you.

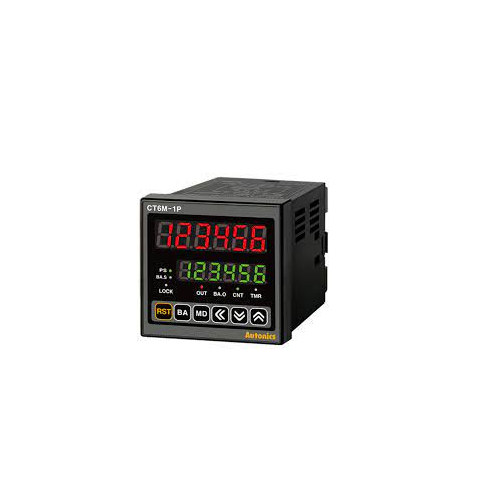

Autonics Timer Counter CT6M-1P4

Specifications :

Display method 6-digit 7-segment LED
Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Terminal Terminal block
Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply 100-240VAC~ 50/60Hz
Time operation POWER ON START
SIGNAL ON START
External Power Supply Max. 12VDC  ±10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
Min. signal Width 1ms/20ms
Memory Protection Approx. 10 years
Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type 1-stage preset
Control output_Relay SPDT (1c): 1
Control output_NPN open collector 2
Protection structure IP65(front panel)
Approval
Counter_Counting range -99999 to 999999
Counter_Scale Decimal point up to fifth digit
Counter_Min. input signal width RESET: Selectable 1ms/20ms
Timer_Min. input signal width INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 322g (approx. 252g)



Autonics Timer Counter CT6M-1P4

Specifications :

Display method 6-digit 7-segment LED
Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Terminal Terminal block
Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply 100-240VAC~ 50/60Hz
Time operation POWER ON START
SIGNAL ON START
External Power Supply Max. 12VDC  ±10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
Min. signal Width 1ms/20ms
Memory Protection Approx. 10 years
Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type 1-stage preset
Control output_Relay SPDT (1c): 1
Control output_NPN open collector 2
Protection structure IP65(front panel)
Approval
Counter_Counting range -99999 to 999999
Counter_Scale Decimal point up to fifth digit
Counter_Min. input signal width RESET: Selectable 1ms/20ms
Timer_Min. input signal width INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 322g (approx. 252g)
